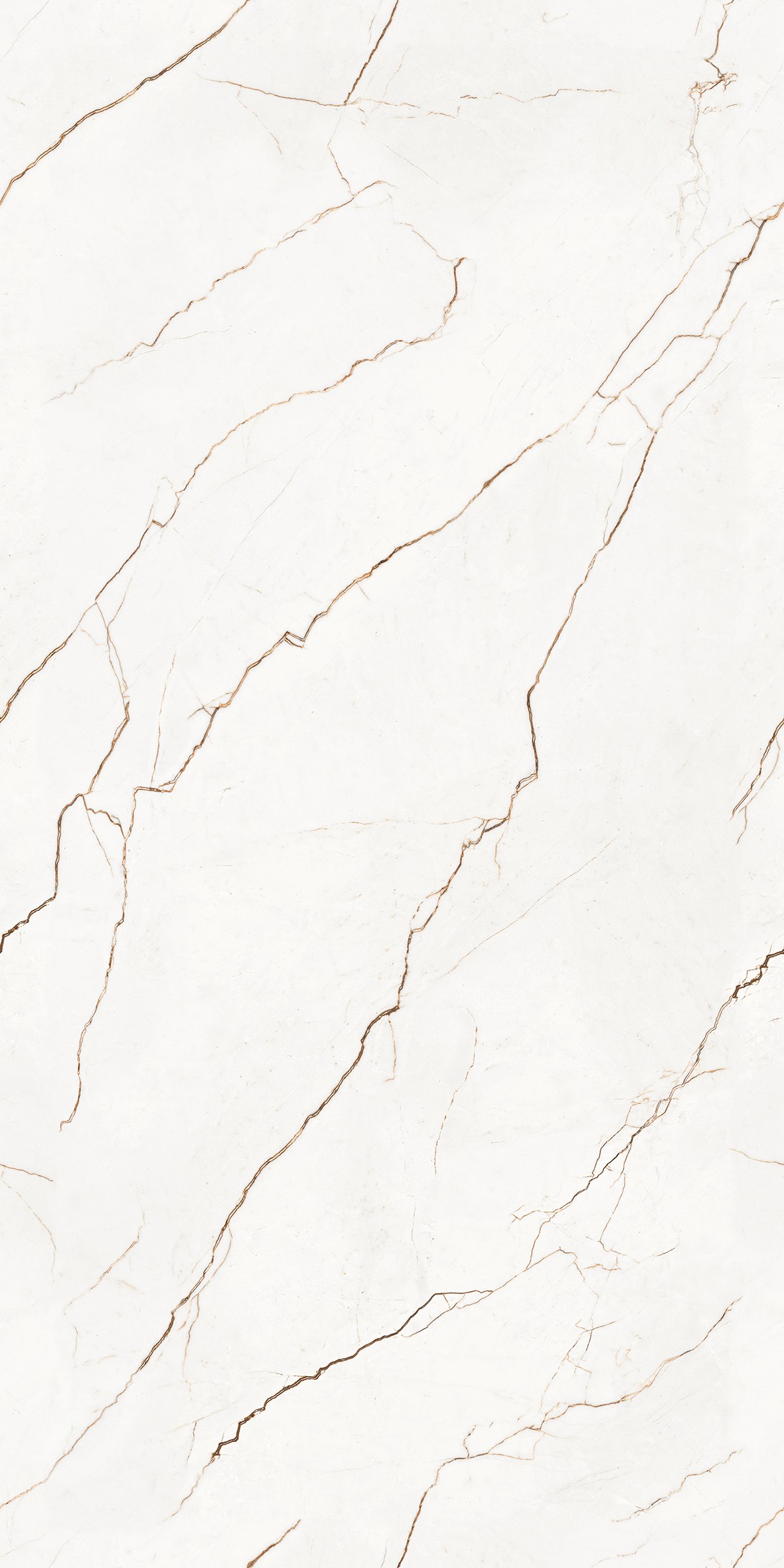

_F1_1.jpg)

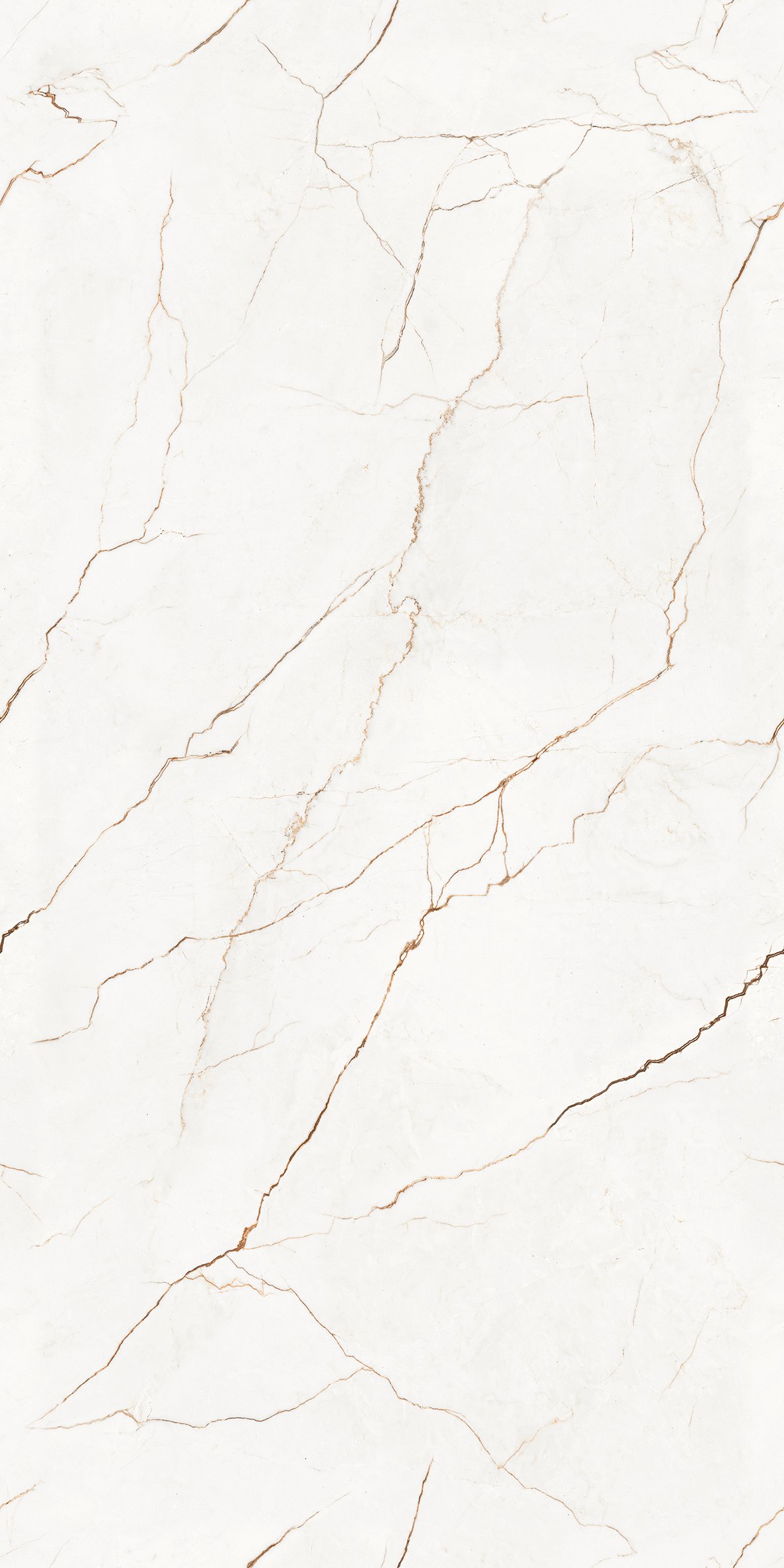

_F2_1.jpg)

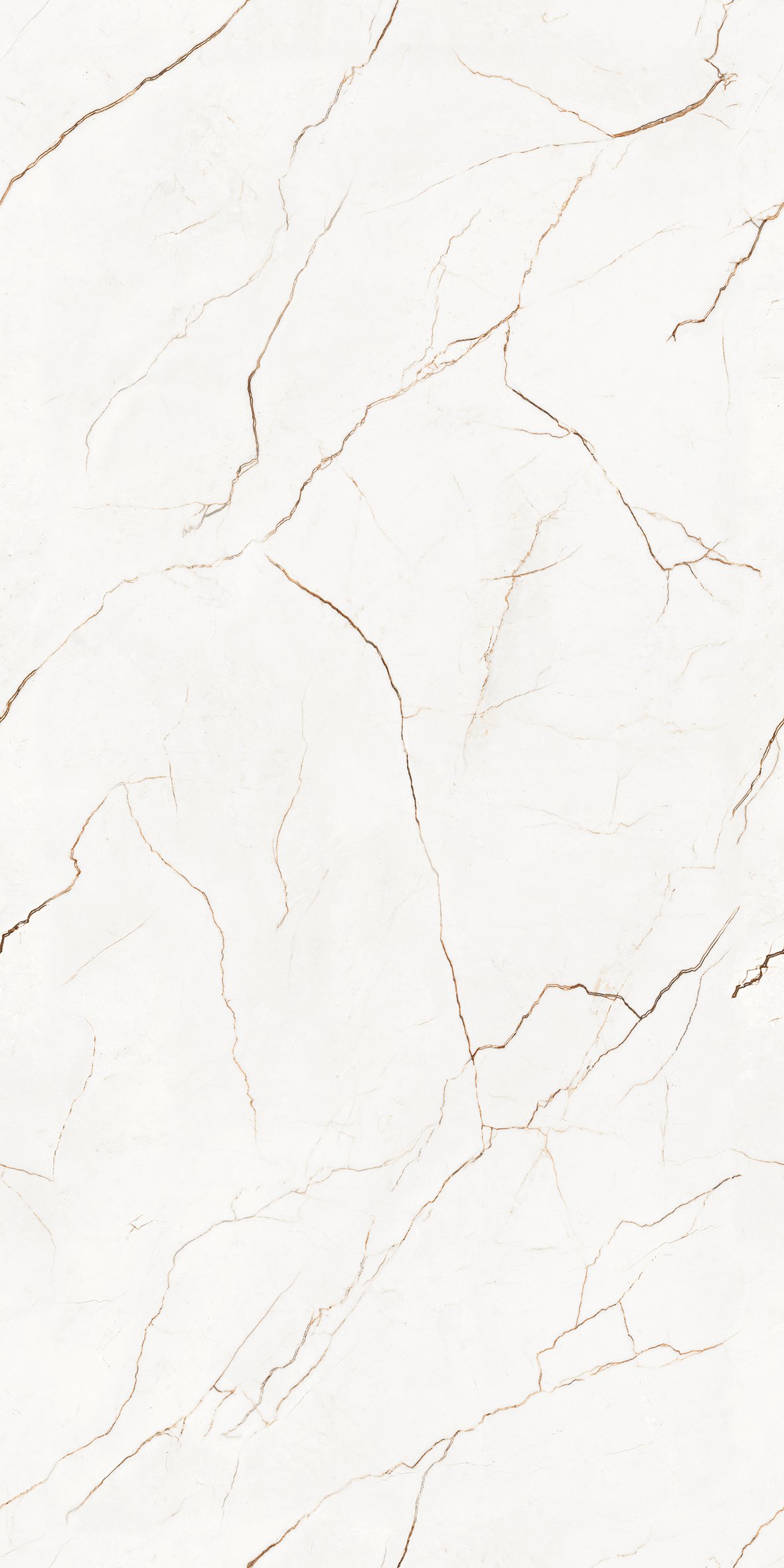

_F3_1.jpg)

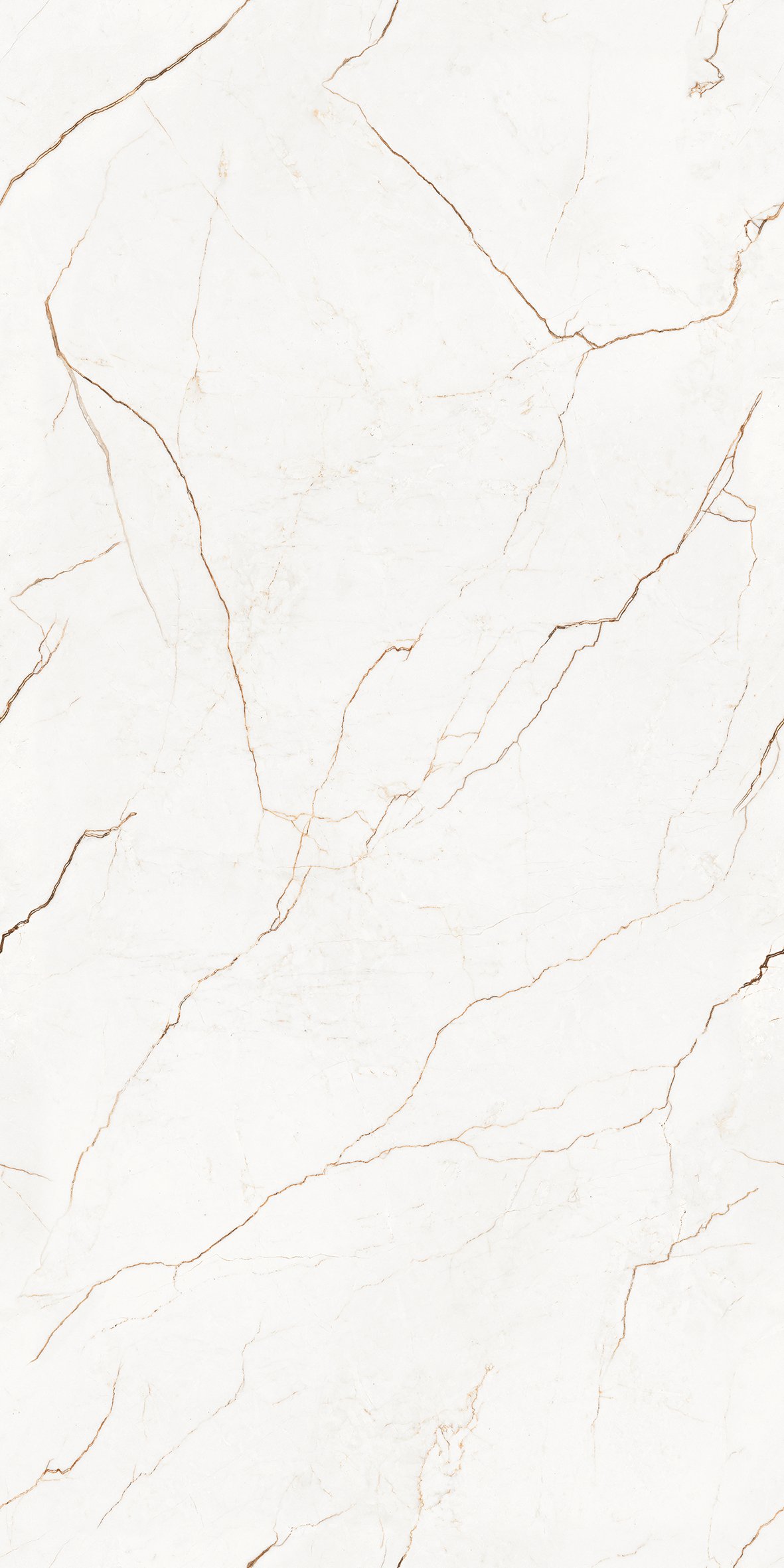

_F4_1.jpg)

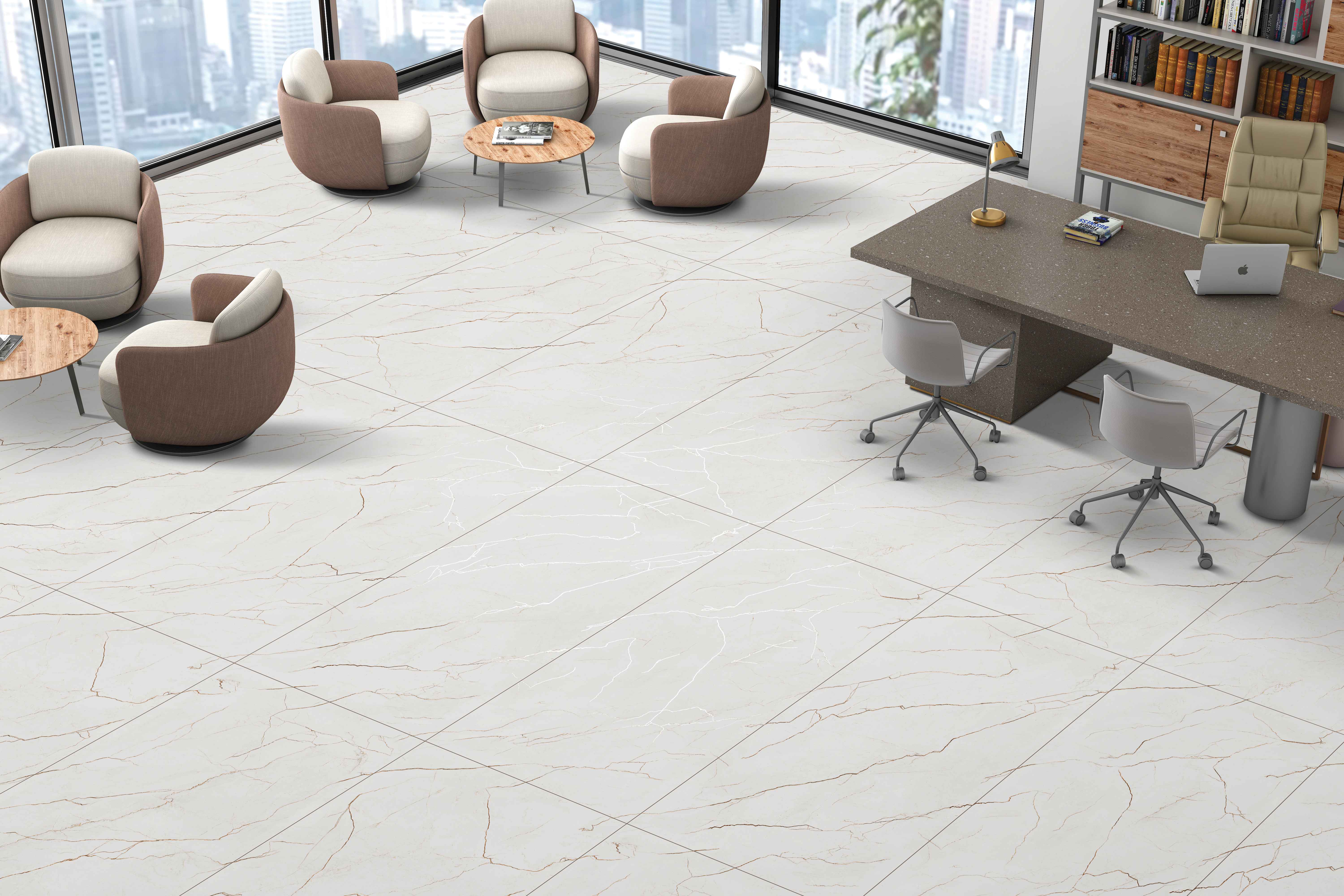

_11zon.jpg)
600X1200mm
15.5
2
1.43
27 KG
9 MM (APROXX)
| Characteristic |
Group BIa ISO 13006/EN-176 |
Group
BIa IS:15622:2017 |
Passero Value | Test According to |
|---|---|---|---|---|
| Deviation in length and width | ±0.6% | ± 0.1% | ±0.1% | ISO 10545.2/IS:13630 (P-1) |
| Deviation in thickness | ±5% | ±4% | ±4% | ISO 10545.2/IS:13630 (P-1) |
| Deviation in Straightness of sides | ± 0.5% | ± 0.4% | ±0.1% | ISO 10545.2/IS:13630 (P-1) |
| Deviation in Rectangularity | ± 0.6% | ±0.1% | ±0.1% | ISO 10545.2/IS:13630 (P-1) |
| Deviation in Surface Flatness | ±0.5% | ±0.2% | ±0.2% | ISO 10545.2/IS:13630 (P-1) |
| Surface Quality & Color (%) | Minimum 95% | Minimum 95% | No visible defects | ISO 10545.2 IS:13630 (P-1) |
| Glossiness with Nano | Declared by | - | Above 80 | ISO 2813 (Glossy meter) |
| Characteristic |
Group BIa ISO 13006/EN-176 |
Group
BIa IS:15622:2017 |
Passero Value | Test According to |
|---|---|---|---|---|
| Scratch Hardness of surface Moh's scale | Min. 3 | Min. 3 | Min. 3 | EN-101/IS:13630 (P-12) |
| Water absorption | 53% | Min. 3 | +3% | ISO 10545.3/IS: 13630 (P-2) |
| Moisture Expansion | Nil | - | Nil | ISO 10545.10 |
| Surface Abrasion | Required | Required | PEI 2 - 4 | ISO 10545.7/IS:13630 (P-12) |
| Characteristic | Test Method | International Std. | Passero Value |
|---|---|---|---|
| Dimension & Surface Quality | |||
| Deviation in Length | ISO-10545-2 | ±0.6% | ±0.2% |
| Deviation in Thickness | ISO-10545-2 | ±5% | +3% |
| Straightness Of Sides | ISO-10545-2 | ±0.5% | ±0.2% |
| Rectangularity | ISO-10545-2 | ±0.6% | ±0.2% |
| Surface Flatness | ISO-10545-2 | ±0.5% | ±0.2% |
| Physical & Thermal Properties | |||
| Water Absorption | ISO-10545-3 | +0.05% | +0.04% |
| Mohs Hardness | EN-101 | Min.5 | Min.5 |
| Flexural Strength | ISO-10545-4 | >35 N/mm2 | >40 N/mm2 |
| Skid Resistance (Friction Coefficient) | ISO-10545-17 | >0.4 | >0.4 |
| Breaking Strength | ISO-10545-11 | >1113 N | >1800 N |
| Frost Resistance | ISO-10545.12 | Frost Proof | Frost Proof |
| Thermal Shock Resistance | ISO-10545-9 | No Damage | No Damage |
| Moisture Expansion | ISO-10545-10 | NIL | NIL |
| Resistance to Surface Abrasion | ISO-10545-7 | Abrasion class shall be specified by the manufacturer | PEI IV & V |
| Chemical Properties | |||
| Chemical Resistance | ISO-10545-13 | No Damage | No Damage |
| Color Resistance | ISO-10545-16 | No Damage | No Damage |
| Stain Resistance | ISO-10545-14 | Resistant | Resistant |
