195X1200mm

12.90

1.2

23 KG

9 MM (APROXX)

Characteristic	Group BIa ISO 13006/EN-176	Group BIa IS:15622:2017	Passero Value	Test According to
Deviation in length and width	±0.6%	± 0.1%	±0.1%	ISO 10545.2/IS:13630 (P-1)
Deviation in thickness	±5%	±4%	±4%	ISO 10545.2/IS:13630 (P-1)
Deviation in Straightness of sides	± 0.5%	± 0.4%	±0.1%	ISO 10545.2/IS:13630 (P-1)
Deviation in Rectangularity	± 0.6%	±0.1%	±0.1%	ISO 10545.2/IS:13630 (P-1)
Deviation in Surface Flatness	±0.5%	±0.2%	±0.2%	ISO 10545.2/IS:13630 (P-1)
Surface Quality & Color (%)	Minimum 95%	Minimum 95%	No visible defects	ISO 10545.2 IS:13630 (P-1)
Glossiness with Nano	Declared by	-	Above 80	ISO 2813 (Glossy meter)

Characteristic	Group BIa ISO 13006/EN-176	Group BIa IS:15622:2017	Passero Value	Test According to
Scratch Hardness of surface Moh's scale	Min. 3	Min. 3	Min. 3	EN-101/IS:13630 (P-12)
Water absorption	53%	Min. 3	+3%	ISO 10545.3/IS: 13630 (P-2)
Moisture Expansion	Nil	-	Nil	ISO 10545.10
Surface Abrasion	Required	Required	PEI 2 - 4	ISO 10545.7/IS:13630 (P-12)

Characteristic	Test Method	International Std.	Passero Value
Dimension & Surface Quality
Deviation in Length	ISO-10545-2	±0.6%	±0.2%
Deviation in Thickness	ISO-10545-2	±5%	+3%
Straightness Of Sides	ISO-10545-2	±0.5%	±0.2%
Rectangularity	ISO-10545-2	±0.6%	±0.2%
Surface Flatness	ISO-10545-2	±0.5%	±0.2%
Physical & Thermal Properties
Water Absorption	ISO-10545-3	+0.05%	+0.04%
Mohs Hardness	EN-101	Min.5	Min.5
Flexural Strength	ISO-10545-4	>35 N/mm2	>40 N/mm2
Skid Resistance (Friction Coefficient)	ISO-10545-17	>0.4	>0.4
Breaking Strength	ISO-10545-11	>1113 N	>1800 N
Frost Resistance	ISO-10545.12	Frost Proof	Frost Proof
Thermal Shock Resistance	ISO-10545-9	No Damage	No Damage
Moisture Expansion	ISO-10545-10	NIL	NIL
Resistance to Surface Abrasion	ISO-10545-7	Abrasion class shall be specified by the manufacturer	PEI IV & V
Chemical Properties
Chemical Resistance	ISO-10545-13	No Damage	No Damage
Color Resistance	ISO-10545-16	No Damage	No Damage
Stain Resistance	ISO-10545-14	Resistant	Resistant

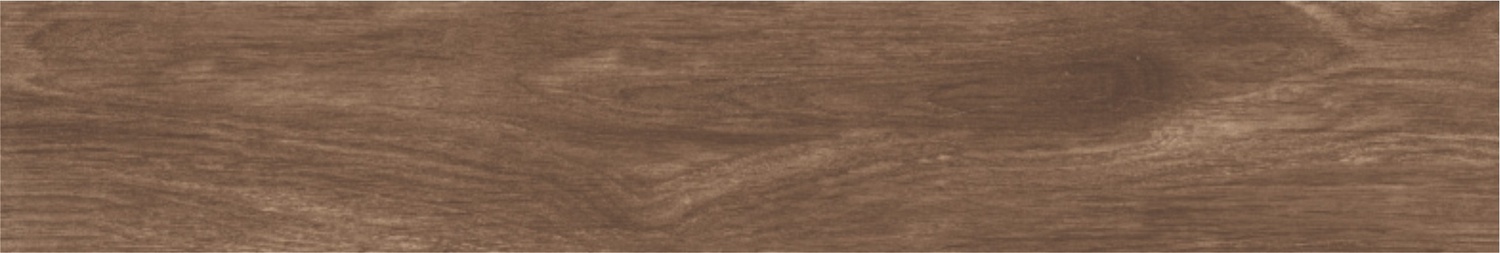

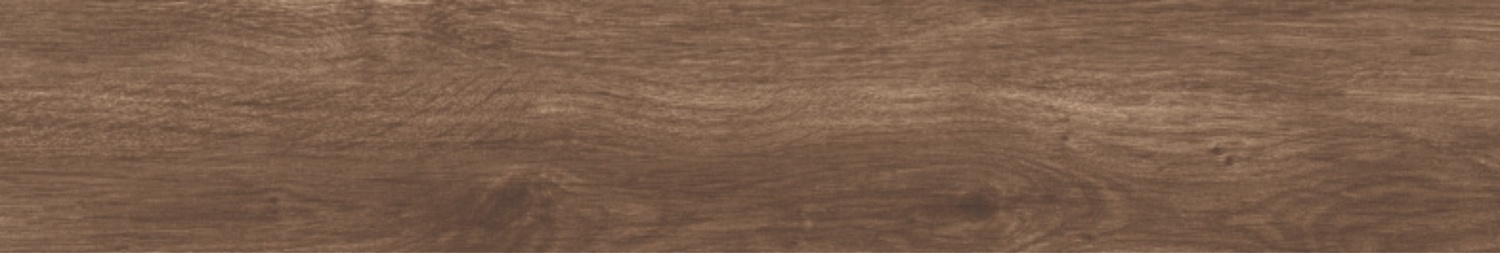

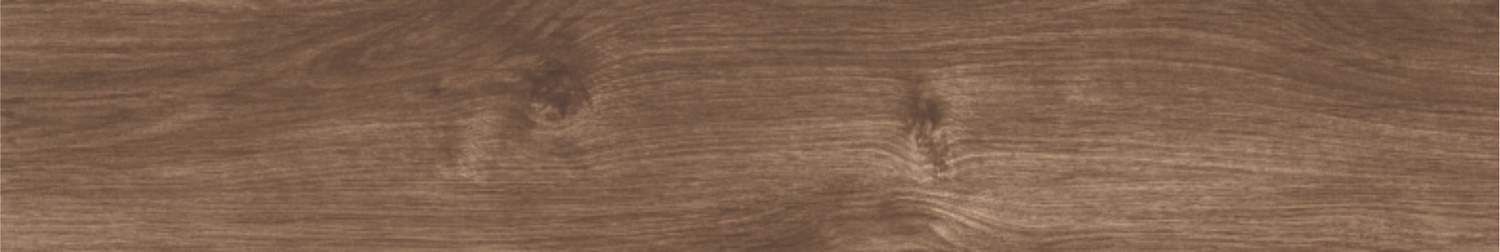

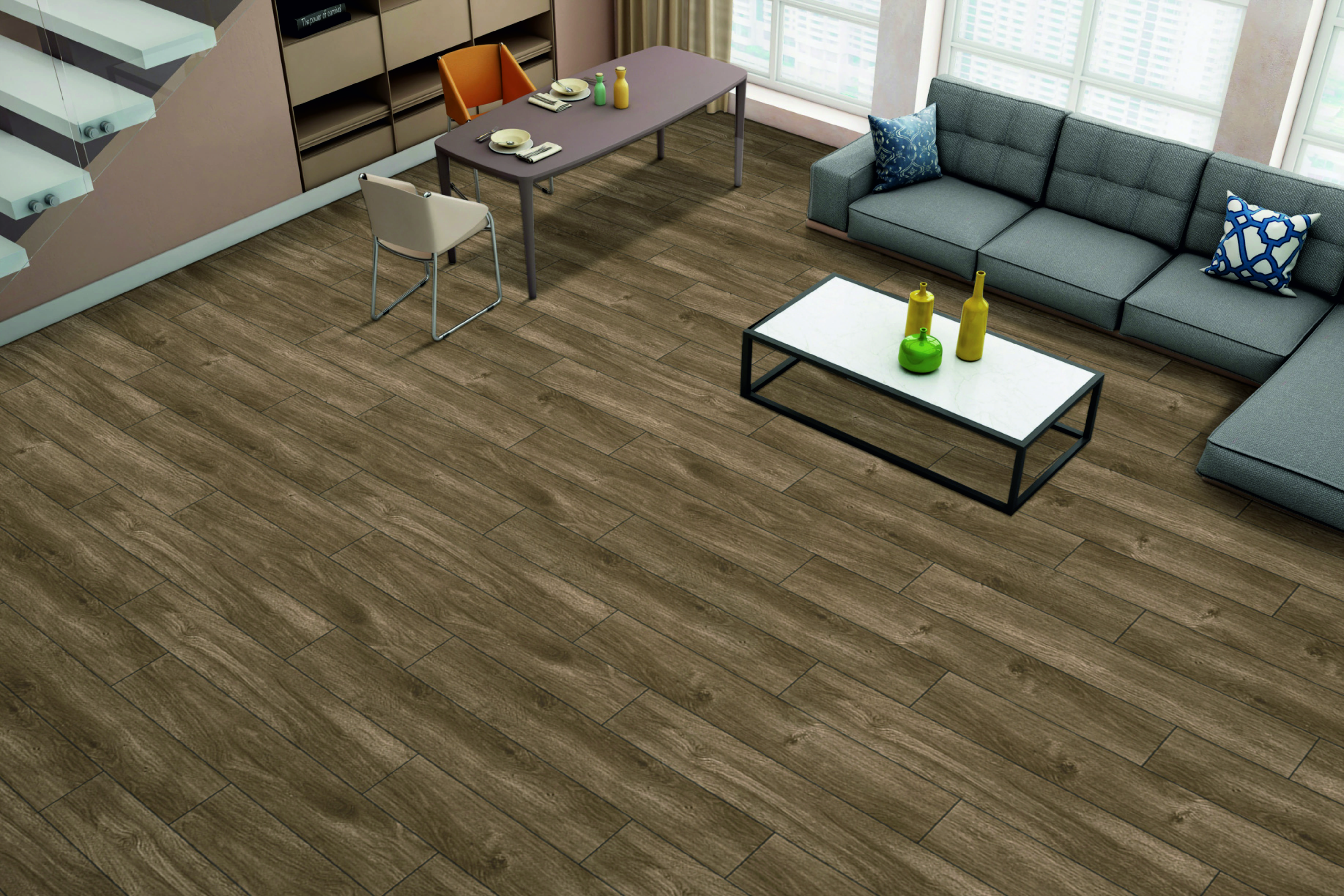

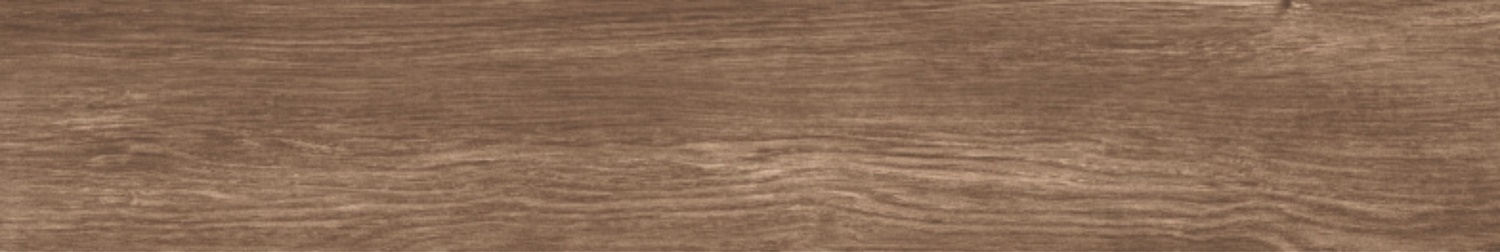

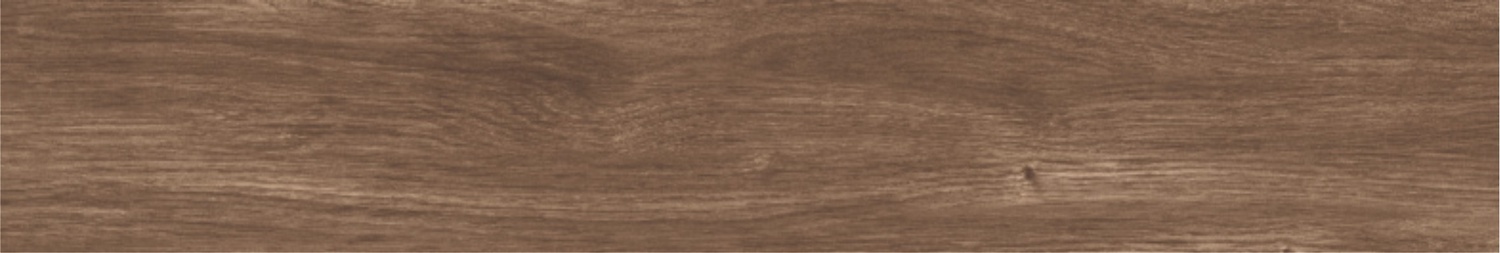

BURMA CANARY NATURAL
