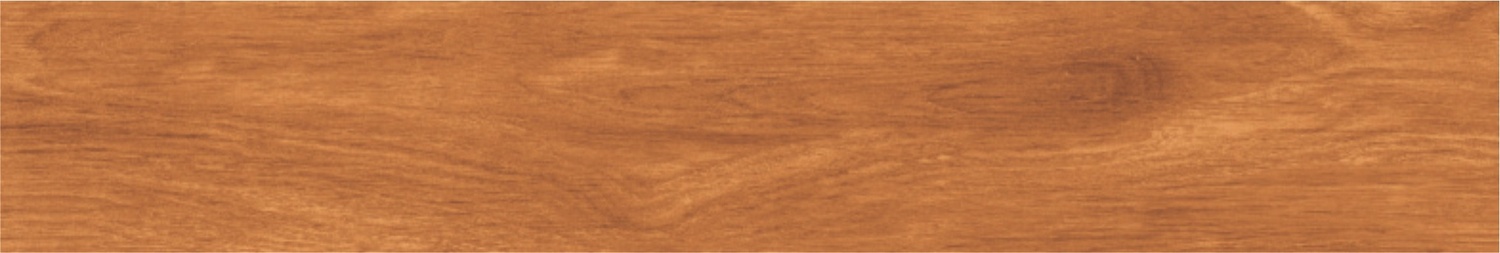

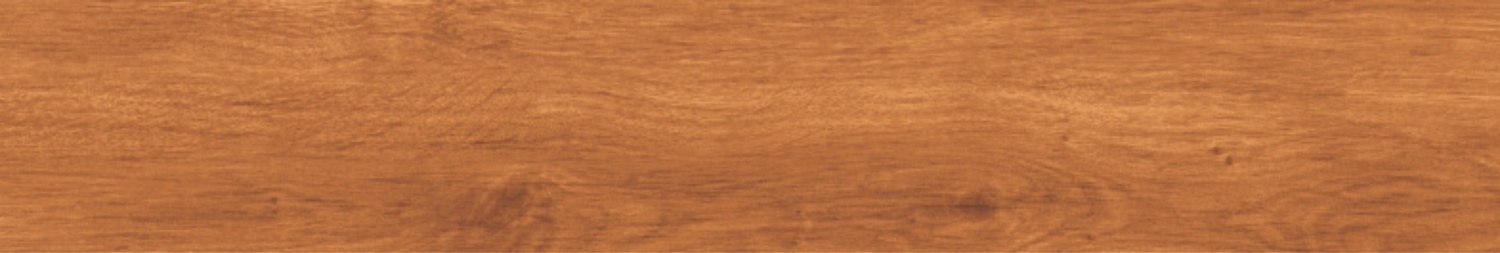

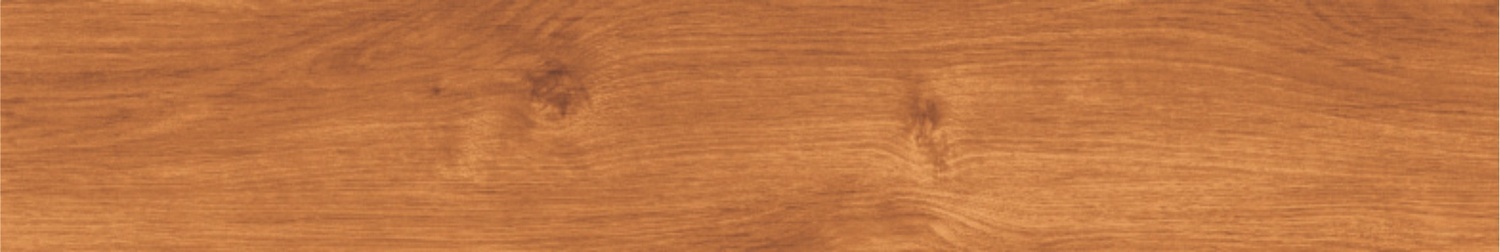

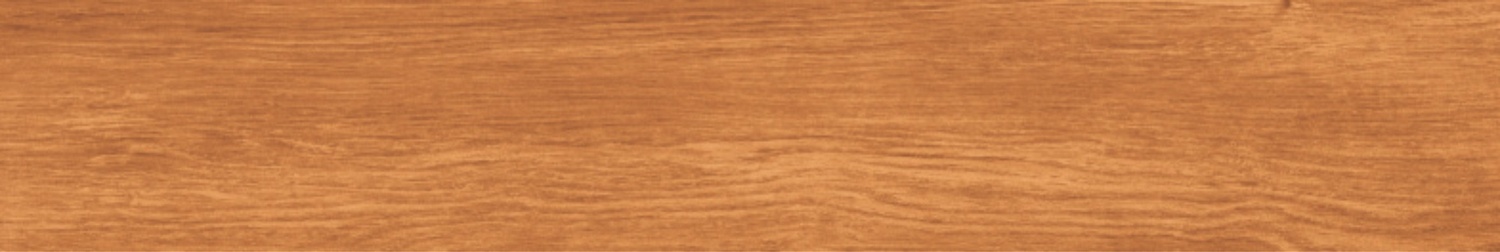

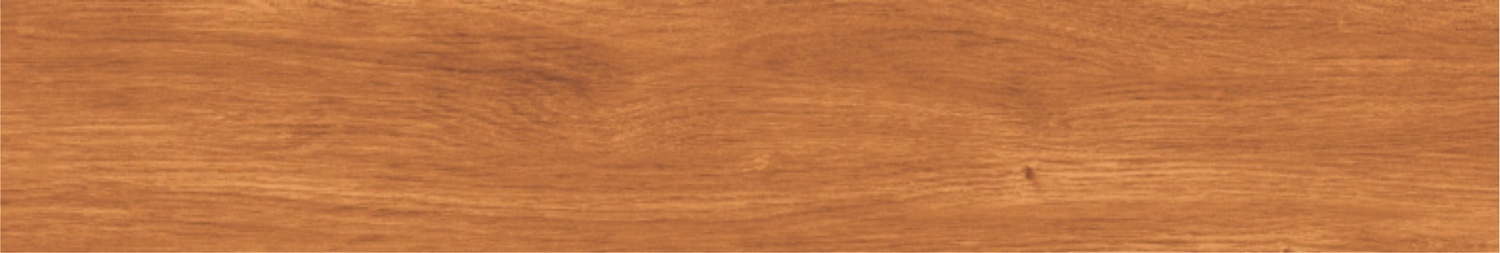

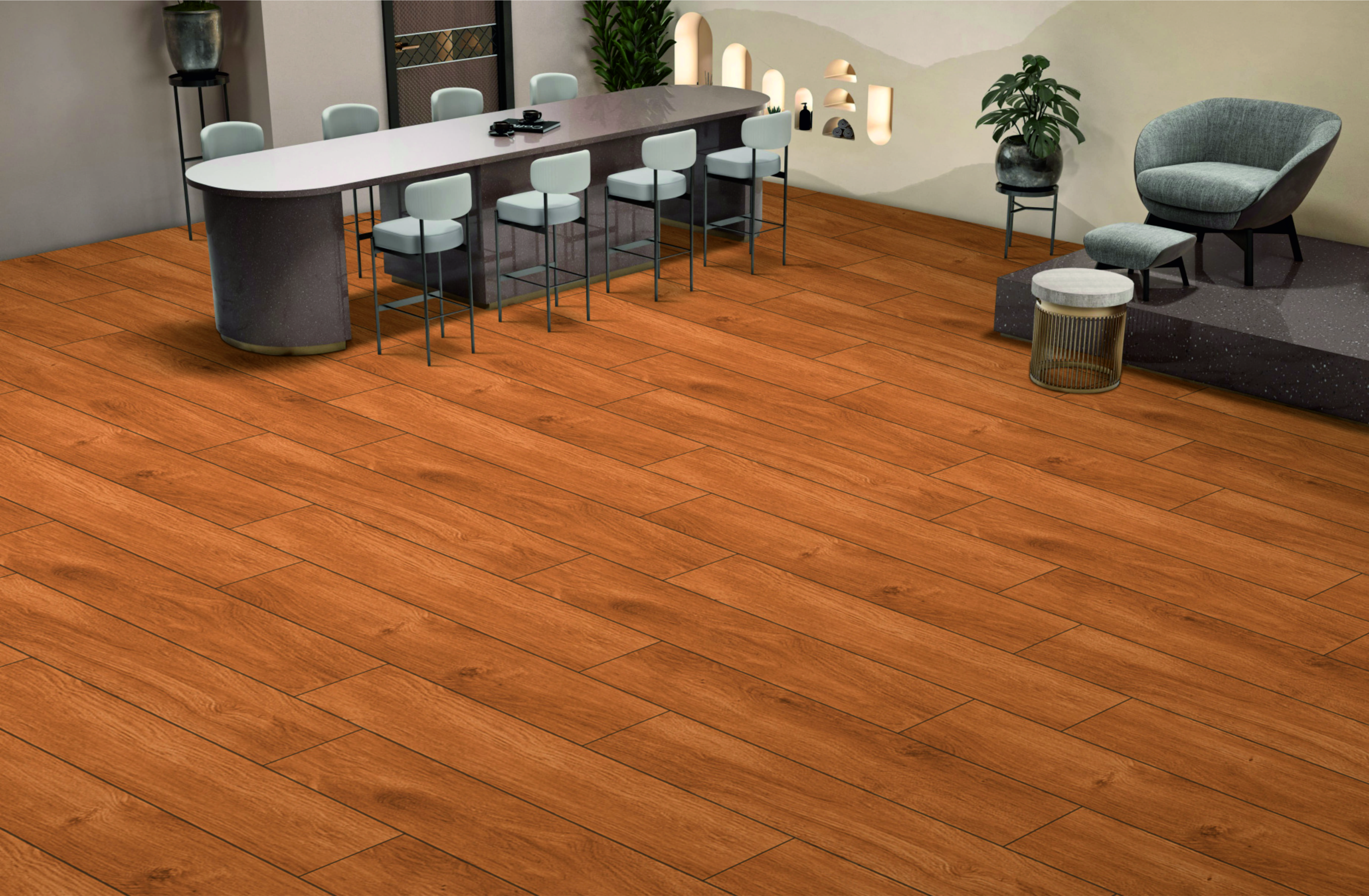

BURMA CANARY ORANGE
Size
195X1200mm
Category
GVT
Finish
MATT
Color
BRIGHT HONEY ORANGE
Get a Quote
Description
Size
195X1200mm
Coverage Area Per Box
12.90
Pcs per Box
5
Total Square Meter
1.2
Weight per Box
23 KG
Thickness
9 MM (APROXX)
Dimensions & Surface Quality
Characteristic
Group BIa
ISO 13006/EN-176
Group BIa
IS:15622:2017
Passero Value
Test According to
Deviation in length and width
±0.6%
± 0.1%
±0.1%
ISO 10545.2/IS:13630 (P-1)
Deviation in thickness
±5%
±4%
±4%
ISO 10545.2/IS:13630 (P-1)
Deviation in Straightness of sides
± 0.5%
± 0.4%
±0.1%
ISO 10545.2/IS:13630 (P-1)
Deviation in Rectangularity
± 0.6%
±0.1%
±0.1%
ISO 10545.2/IS:13630 (P-1)
Deviation in Surface Flatness
±0.5%
±0.2%
±0.2%
ISO 10545.2/IS:13630 (P-1)
Surface Quality & Color (%)
Minimum 95%
Minimum 95%
No visible defects
ISO 10545.2 IS:13630 (P-1)
Glossiness with Nano
Declared by
-
Above 80
ISO 2813 (Glossy meter)
Physical Characteristics
Characteristic
Group BIa
ISO 13006/EN-176
Group BIa
IS:15622:2017
Passero Value
Test According to
Scratch Hardness of surface Moh's scale
Min. 3
Min. 3
Min. 3
EN-101/IS:13630 (P-12)
Water absorption
53%
Min. 3
+3%
ISO 10545.3/IS: 13630 (P-2)
Moisture Expansion
Nil
-
Nil
ISO 10545.10
Surface Abrasion
Required
Required
PEI 2 - 4
ISO 10545.7/IS:13630 (P-12)
Characteristic
Test Method
International Std.
Passero Value
Dimension & Surface Quality
Deviation in Length
ISO-10545-2
±0.6%
±0.2%
Deviation in Thickness
ISO-10545-2
±5%
+3%
Straightness Of Sides
ISO-10545-2
±0.5%
±0.2%
Rectangularity
ISO-10545-2
±0.6%
±0.2%
Surface Flatness
ISO-10545-2
±0.5%
±0.2%
Physical & Thermal Properties
Water Absorption
ISO-10545-3
+0.05%
+0.04%
Mohs Hardness
EN-101
Min.5
Min.5
Flexural Strength
ISO-10545-4
>35 N/mm2
>40 N/mm2
Skid Resistance (Friction Coefficient)
ISO-10545-17
>0.4
>0.4
Breaking Strength
ISO-10545-11
>1113 N
>1800 N
Frost Resistance
ISO-10545.12
Frost Proof
Frost Proof
Thermal Shock Resistance
ISO-10545-9
No Damage
No Damage
Moisture Expansion
ISO-10545-10
NIL
NIL
Resistance to Surface Abrasion
ISO-10545-7
Abrasion class shall be specified by the manufacturer
PEI IV & V
Chemical Properties
Chemical Resistance
ISO-10545-13
No Damage
No Damage
Color Resistance
ISO-10545-16
No Damage
No Damage
Stain Resistance
ISO-10545-14
Resistant
Resistant
